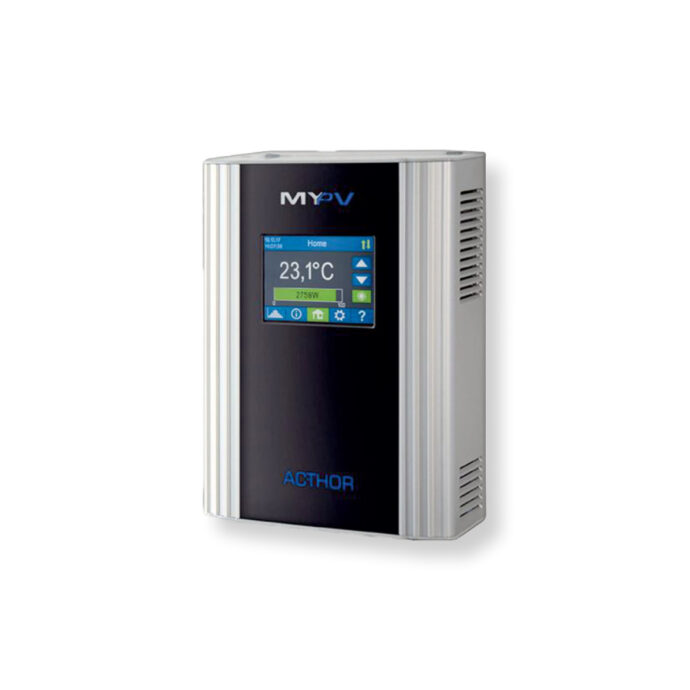

my-PV AC-THOR – Power Manager for hot water & heating with PV surplus (3kW)

Get more out of your PV system – with the AC-THOR Power Manager Do you have a photovoltaic system and feed your surplus electricity into the grid for just a few cents per kWh? It doesn't have to be that way! my-PV AC-THOR It automatically detects your excess PV power and converts it into free hot water – a clever alternative to expensive battery storage. Key facts at a glance: The AC-THOR is an intelligent power manager that continuously controls electric heating elements (0-3 kW) depending on the available solar power. Instead of wasting your energy, use it yourself – for hot water when showering or to supplement your heating system. Why the AC-THOR is the right choice for you Maximum self-consumption without expensive battery storage With the AC-THOR you can increase your self-consumption of PV power to Up to 85% – and all this without an additional energy storage system. On sunny days, the AC-THOR can cover your entire hot water needs. In summer, your gas or oil heating system remains off, significantly reducing your heating costs. Real numbers: A four-person household needs approximately 2.500-3.500 kWh per year for hot water. At current electricity prices, this will save you money. several hundred euros annually – Money that would otherwise be spent on grid electricity or gas. Stepless adjustment to your solar yield Unlike simple on/off heating elements, the AC-THOR regulates the power output. stepless from 0 to 3.000 wattsThis means that even with changing cloud cover or when only 500 watts of excess power are available, the device optimally utilizes every ray of sunshine. No energy is lost, and there is no unnecessary feed-in to the grid. Easy retrofit into your existing system The AC-THOR was specifically designed for the retrofitting developed. You will need: An existing PV system (regardless of manufacturer) A hot water storage tank or buffer tank with a free connection An electric heating element (0-3 kW) Important: The AC-THOR is a control unit and includes no heating elementYou will need a separate electric heating element, which the AC-THOR will then control intelligently. This can either be a new one or – if you already have an electric heating element – ​​you can use that one. The installation is done via pluggable connectors – No complicated wiring required. The integrated touchscreen allows you to operate the device directly, without additional controls. This is how the AC-THOR works in practice Intelligent surplus detection The AC-THOR works optimally with the my-PV WiFi Meter (Sold separately) together. The WiFi Meter continuously measures how much electricity your PV system is currently generating and how much your household is consuming. As soon as there is a surplus, the AC-THOR automatically transfers it to your heating element. Alternative: Many modern inverters are already directly compatible. The AC-THOR communicates with over 70 manufacturers of inverters and energy management systems. Perfect integration with battery storage systems Do you already have a battery storage system? No problem! The AC-THOR works as Hybrid storage and prioritizes intelligently: First your battery is charged, then the hot water is heated. This ensures that every kilowatt-hour is used optimally, even with larger PV systems. Hot water supply even without sun On cloudy days or in winter, you can optionally set the hot water to be heated to a minimum temperature – if necessary, using mains electricity. This way you always warm water, even when the sun isn't shining. Technical Details & Applications What can you control with the AC-THOR? The AC-THOR controls electric heating elements in: Warmwasserbereitung: Drinking water reservoir Buffer storage tank for heating support Existing electric heating elements (0-3 kW) Optional: Heating support Electric underfloor heating Infrared heating panels Electric heating mats Suitable heating element: The AC-THOR requires an electric heating element with a power output of 0-3 kW. The my-PV screw-in heating element 3 kW (sold separately) is recommended, as it was specifically designed for use with the AC-THOR. However, you can also use existing standard heating elements. Recommended accessories: my-PV screw-in heating element 3 kW (heating rod) my-PV WiFi Meter (for precise surplus measurement) Additional temperature sensor (up to 4 sensors can be connected) System openness & smart home integration The AC-THOR is not a closed systemThanks to open interfaces, it can be easily integrated into your existing setup: Compatible with common smart home systems (Loxone, Home Assistant, KNX) Modbus interface for energy management systems PWM input for external controllers Summary: For whom is the AC-THOR ideal? The my-PV AC-THOR is the perfect solution for you if you: You have an existing PV system and want to increase your self-consumption. Want to use surplus solar power effectively instead of feeding it into the grid cheaply. Looking for a cost-effective alternative to expensive battery storage systems want to reduce gas or oil heating costs for hot water Want a flexible, open-system product that works with your existing technology? Get more out of your photovoltaic system – order the AC-THOR now from PVundSO! Technical information Mains voltage: 230 V, 50 Hz Stepless output max.: 0–3.000 W switching output 16 A Mains connection: Single-phase, safety plug Consumer connection: Protective contact socket for resistive loads safeguarding: 13 A or 16 A Network-side THDi: At 50% power <3%; at 100% power <3% Connection cable: 2,8 m Standby consumption: <1,5 W Efficiency: > 98% at rated power Operating temperature range: 0 ° C to 40 ° C Storage temperature: -20 °C to 70 °C Display: Color graphics, touch screen 2,83" Weight 1,5 kg including cable Dimensions (W x H x D): 135 x 210 x 65 mm Permissible humidity: 0 – 99 % (non-condensing) Temperature sensor: my-PV temperature sensor (5 m) Interfaces: Ethernet RJ45, RS485 Warranty: 2 years Compatible systems: See www.my-pv.com Frequently Asked Questions (FAQ) Do I absolutely need an electrician for the installation? The manufacturer recommends installation by an authorized professional. However, since all connections are pluggable and no wiring is required, the installation effort is significantly less than with conventional systems. If you have any questions about installation, please contact us via WhatsApp or email. Does the AC-THOR already include a heating element? No, the AC-THOR is a control unit (power manager) and contains no heating elementYou will need a separate electric heating element (0-3 kW), which you can either purchase new or use if you already have one. The my-PV screw-in 3 kW heating element is available separately from us as a suitable accessory. Can I use my existing heating element with the AC-THOR? Yes, in many cases this is possible! The AC-THOR can control electric heating elements with a power output of 0-3 kW. If your hot water storage tank already has an electric heating element, it can theoretically be used. For buffer tanks with an existing heating system connection, an additional electric heating element is usually installed for PV operation, while the existing heating element remains in place. How much can I save with the AC-THOR? That depends on the size of your PV system and your hot water consumption. Typical households save money by increasing their self-consumption. 30-40% of hot water costsFor a four-person household, that amounts to approximately 300-500 euros per year. Is the AC-THOR compatible with my inverter? The AC-THOR is compatible with over 70 manufacturers, including Fronius, SMA, SolarEdge, Kostal, Huawei, and many more. If your inverter is not listed, you can use the my-PV WiFi Meter – this makes the AC-THOR completely manufacturer-independent. What is included? AC-THOR Power Manager (3 kW) 1x temperature sensor (5m cable) wall mount mounting material Manual Not included: Heating element, WiFi meter (available separately if required) Downloads Downloads my-PV AC-THOR Power Manager My-PV AC-THOR Operating Instructions My-PV AC-THOR Datasheet My-PV AC-THOR Information Sheet My-PV AC-THOR Installation Instructions My-PV Product Overview Video Tutorial Detailed instructions for initial setup and the most important settings on the touchscreen
